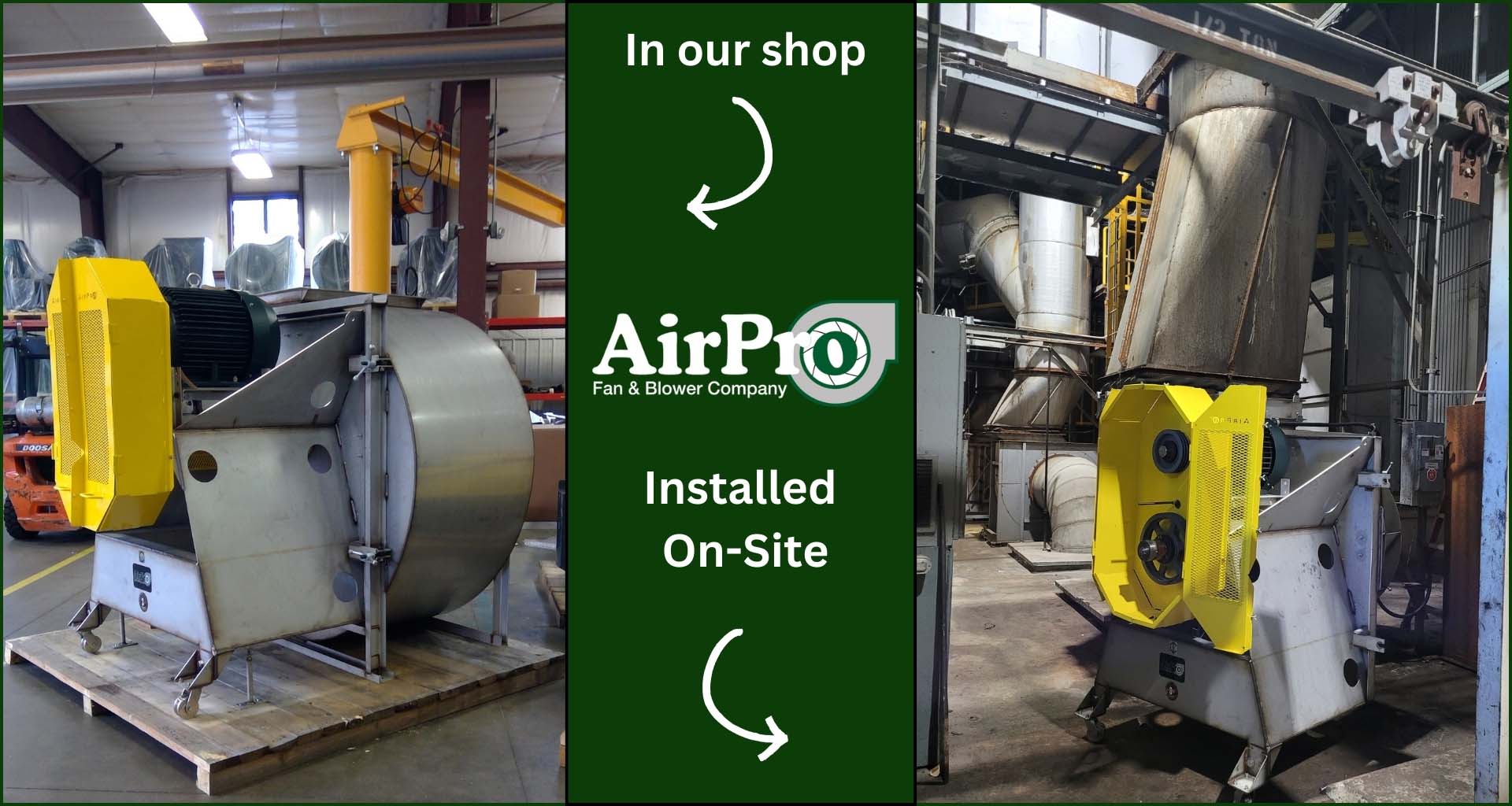

Today, we spotlight a uniquely engineered swingout BIHS fan, custom-designed by our engineering team for an automotive plant in the Midwest. This fan features a quick-release access door positioned at 9 o’clock on the fan housing, with a flush interior surface that allows easy wheel access. Constructed with stainless steel AMCA C spark-resistant materials free of any silicone, grease-lubricated bearings, and precision laser cutting, it delivers exceptional efficiency and power without sacrificing durability and reliability. We also equipped this fan with a Formsprag backstop clutch to keep the wheel from rotating when not in operation.
The fan is powered by a 75 HP premium-efficiency TEFC motor, mounted on a custom pedestal featuring a jackscrew and caster system for convenient adjustability. An OSHA-compliant guard cage, coated in vibrant canary yellow enamel, provides safe and easy access to the V-belt drive.
| Product Type | BIHS |
| Size | 490 |
| Class | 3 |
| Arrangement | F |
| Horsepower | 55.5 |
| Max Design Temperature | 150°F |
